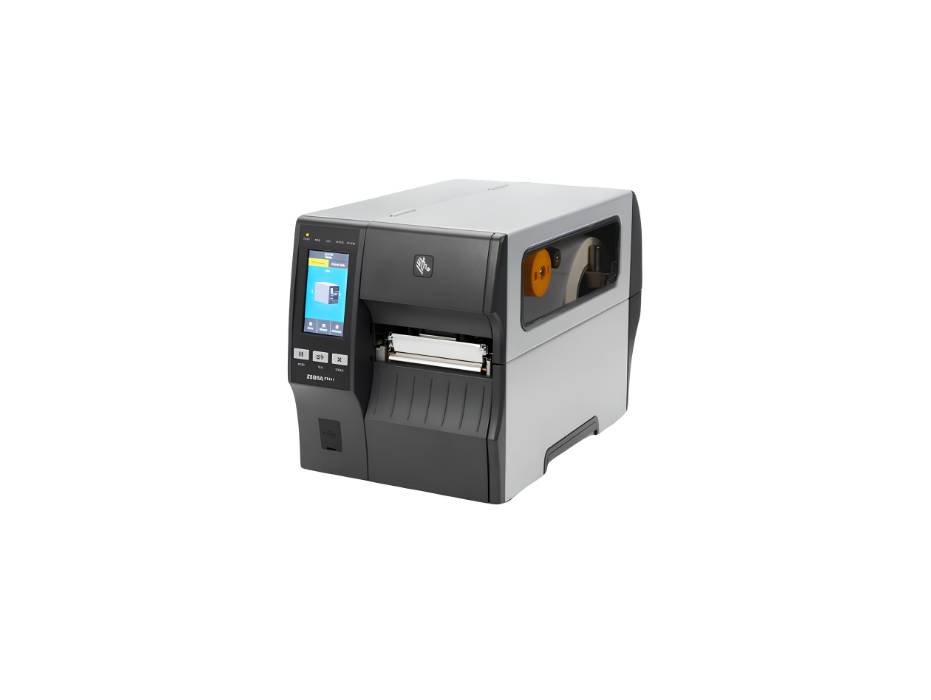

Zebra ZT411, 8 dots/mm (203 dpi),disp. (color), RTC, EPL, ZPL, ZPLII , USB (2x), RS-232, Bluetooth (class 4.1), Ethernet

Engineered for performance, the Zebra ZT411 offers reliable, high-speed printing for demanding industrial environments. With robust connectivity options and advanced label compatibility, this powerhouse printer keeps workflows efficient and precise.

Key Features:

• Print Resolution: 203 dpi (8 dots/mm) for clear, professional-grade barcodes and graphics

• Display: Full-color touch display for intuitive navigation and quick status updates

• Real-Time Clock (RTC): Ensures time-sensitive label accuracy across shifts

• Printer Languages: Supports EPL, ZPL, and ZPL II for seamless integration into existing systems

• Connectivity:

  • Dual USB 2.0 ports for flexible peripheral attachment

  • RS-232 Serial Port for legacy device support

  • Bluetooth 4.1 for secure mobile communication

  • Ethernet for reliable network integration in high-volume environments

• Durability: Rugged metal frame built to withstand harsh industrial settings

• Expandability: Easily upgradable with media handling and RFID options for future-proof versatility

Technical Specifications:

Print Capabilities

• Resolution: 203 dpi (8 dots/mm)

• Maximum Print Width: 4.09 in. (104 mm)

• Maximum Print Speed: Up to 14 ips (356 mm/sec)

• Print Methods: Thermal transfer and direct thermal

• Print Length: Up to 157 in. (3988 mm)

Display & Operation

• Display: 4.3-inch full-color touch screen

• Status Indicators: Bi-colored LEDs for quick status checks

• Processor: ARM Cortex A7

• Memory: 256 MB RAM / 512 MB Flash (64 MB user-available)

Time & Language Support

• Real-Time Clock (RTC): Built-in for time-sensitive labeling

• Printer Languages: EPL, ZPL, ZPL II (selectable via software or front panel)

Connectivity

• USB Ports: 2x USB Host + 1x USB 2.0

• Serial Port: RS-232 (DB9F connector, configurable baud rate)

• Bluetooth: Class 4.1

• Ethernet: 10/100 Mbps (supports Webview and Alert features)

Media Handling

• Media Types: Continuous, die-cut, notch, black-mark

• Media Width: 1.00 in. to 4.50 in. (tear/cutter); up to 4.25 in. (peel/rewind)

• Roll Size: Up to 8.0 in. OD on 3 in. core

• Sensors: Dual media sensors (transmissive and reflective)

Software & Integration

• Link-OS™ Enabled: For remote management and integration

• Print Touch™: NFC pairing and QR code access to support

• XML-Enabled Printing: For direct XML communication
