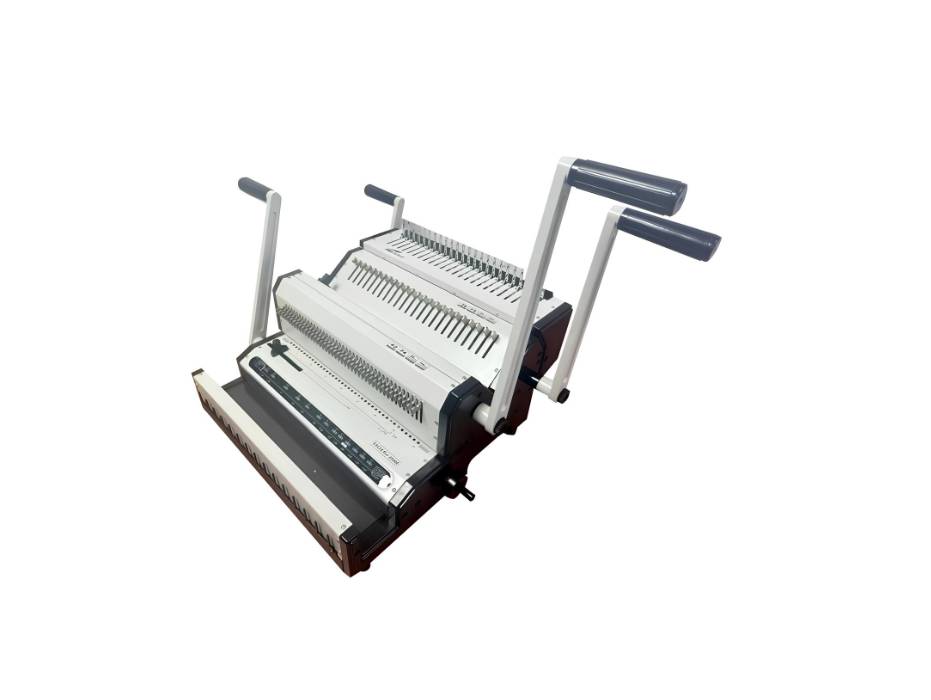

Eagle CW 2500 E manual multi binding machine(3:1 wire & comb)

The Eagle CW 2500 E is a versatile manual binding machine designed for offices, print shops, and institutions that require multiple binding formats. Supporting both 3:1 wire binding and plastic comb binding, it delivers high flexibility in finishing your documents — from reports and manuals to presentations — with a single machine.

Key Features:

• Dual-Format Binding (Wire + Comb): Enables both 3:1 pitch wire binding (professional double-loop wire) and plastic comb binding, giving you the option to choose the finish that fits your document type.

• Manual Operation: Simple, reliable manual punching and binding mechanism which is cost-effective and ideal for moderate volumes where full automation is not necessary.

• Solid Capacity: Specifications for similar models show punching capacity around ~20-25 sheets (80gsm) per manual punch, and binding capacity up to ~500 sheets for comb binding (or ~140 sheets for wire at certain diameters).

• Adjustable Margin & Depth Settings: Features margin depth adjustment (for example 2.5mm / 4.5mm / 6.5mm) to ensure correct edge punching for different document thicknesses and formats.

• Wide Document Format / Standard Size Compatibility: Suitable for A4 or slightly larger widths (A4+), making it appropriate for standard office documents.

• Robust Build: Manual binding machines of this caliber are built with metal parts/dies for durability — suitable for frequent use in binding centers.

• Efficient Workflow: By having both comb and wire formats in one machine, you reduce equipment footprint and cost vs having two separate machines — and you gain flexibility for different binding jobs.

Specifications:

• Width: 330mm/Wire 40 Holes & Comb 24 Holes
• Punching capacity: 25 Sheets (80gsm)
• Binding capacity: 140 Sheets (up to 14mm)-wire
• Binding capacity: 500 Sheets (up to 50mm)-Come
• Power: 120w
• size : 480 x 405 x 220
• Weight: 28kg
• 1 Year Warranty
