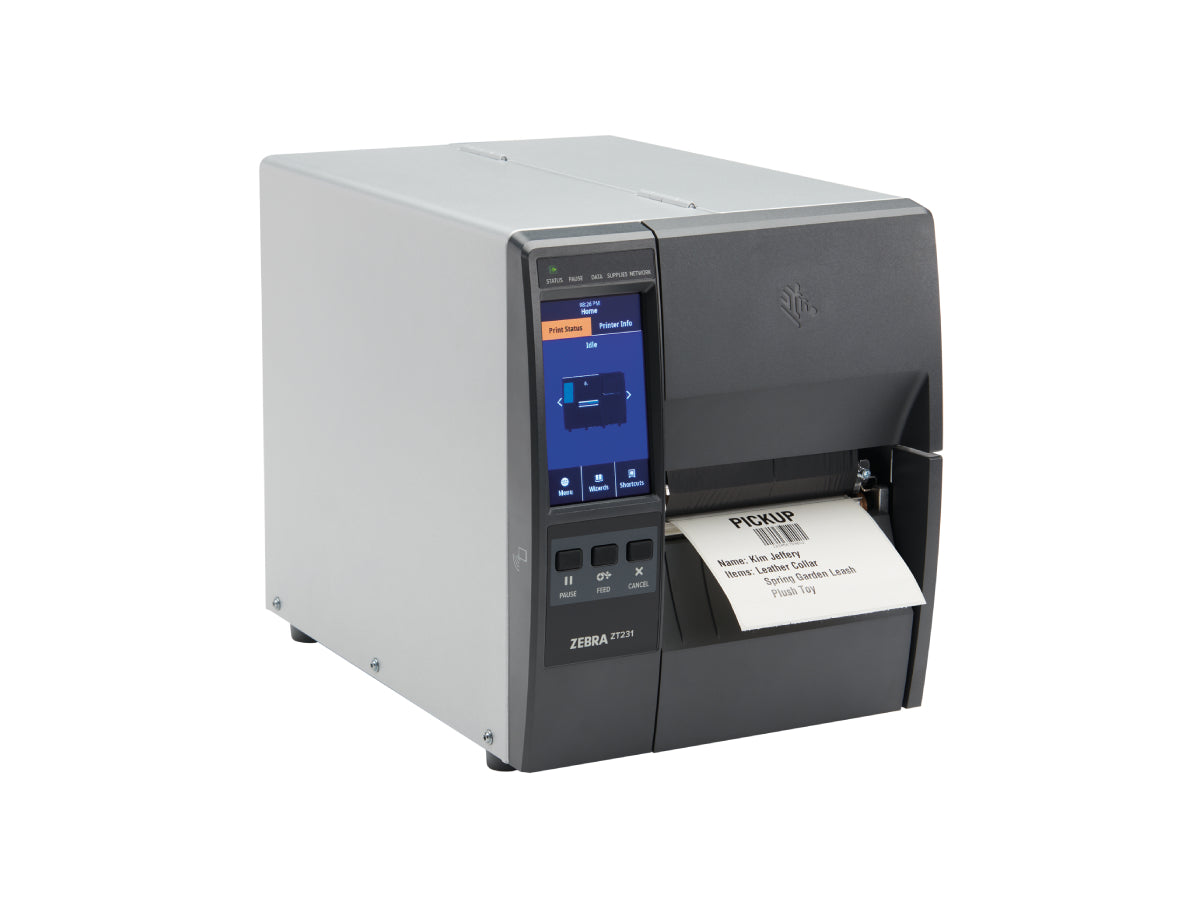

Zebra ZT231 Industrial Label Printer

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up – without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more – all in one space-saving footprint. Plus, add optional capabilities like RFID, wireless connectivity and media handling features when you need them. But that’s not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That’s how Zebra defines value.

• Print methods: direct-thermal or thermal-transfer
• Construction: metal frame and metal enclosures
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Three-color LEDs for quick printer status
• 4.3” color resistive touch screen with intuitive menu for quick operation and settings
• Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
• ENERGY STAR® certified
• Bluetooth Low Energy (BTLE) technology for enhanced location precision
• Real-Time Clock (RTC)

Technical Specification:

• Resolution: 203 dpi/8 dots per mm
• Memory: 256 MB SDRAM memory
• Maximum Print Width: 4.09 in./104 mm
• Maximum Print Speed: 12 ips (203 dpi) or 8 ips (300 dpi)
• Maximum Print Length: 203 dpi: 157 in/3988 mm or 300 dpi: 73in/1854 mm
• Media Width: 0.75 in./19.4 mm to 4.50 in./114 mm
• Media Roll Size: 8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core or  6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
• Media Thickness: 0.003 in./0.076 mm to 0.010 in./0.25 mm
• Media Types: Continuous, die-cut, notch, black mark

Ribbon

• Standard Length: 1,476 ft./450 m
• Width: 2 in./51 mm to 4.33 in./110 mm
• Core: 1.0 in./25.4 mm
